KEY FEATURES:

  • Produces ozone from oxygen
  • **PCOP system on board
  • Remote Control Safety Shutoff
  • Easy to install and maintain
  • Low operation cost

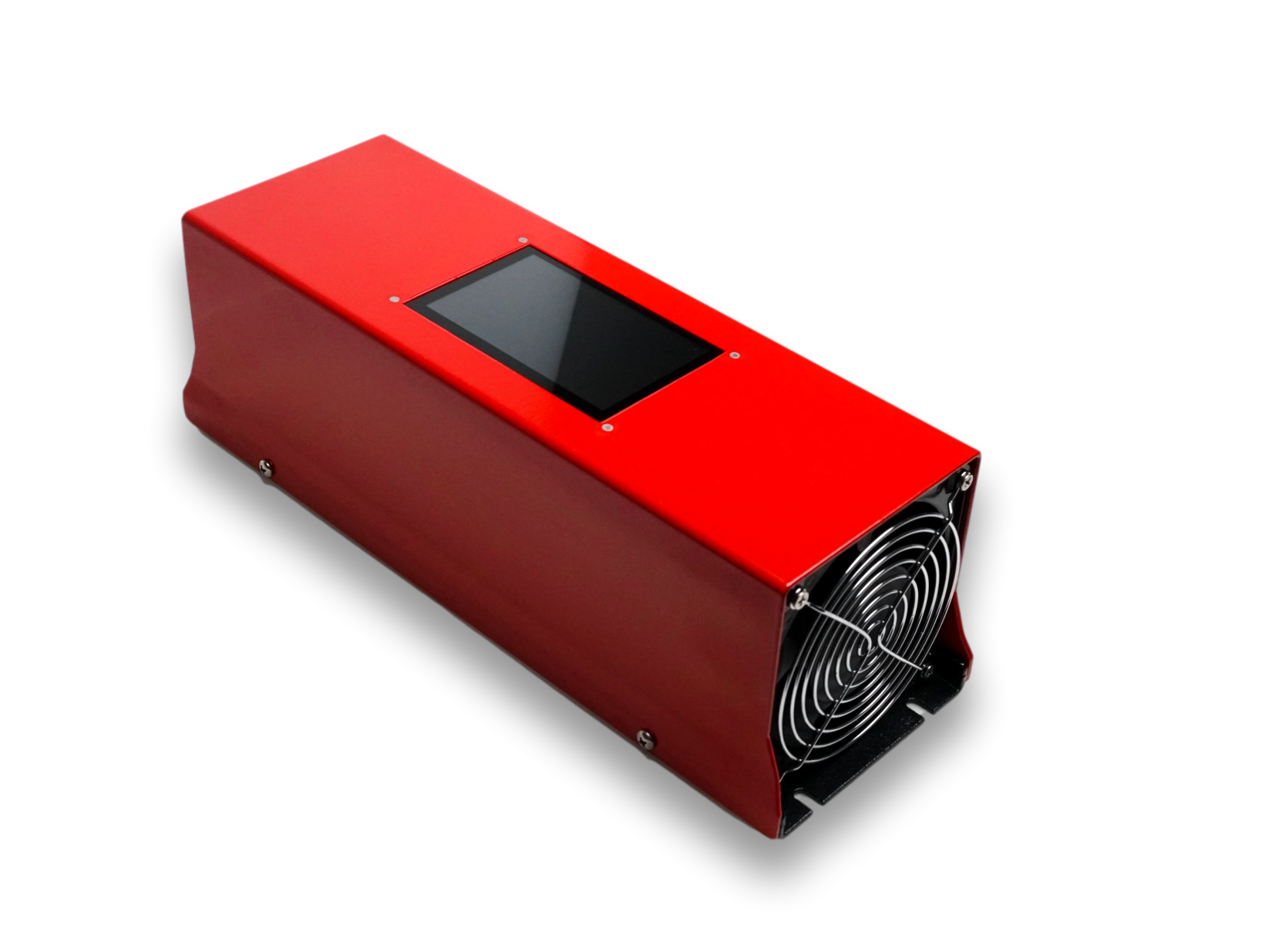

NANO 15 | AIR COOLED OZONE GENERATOR

Many Ozone Generators are producing Ozone at a 3% concentration. Besides, hardly achieving 30% of total ozone dissolved and wasting incredibly large amounts of Oxygen.

There is a much better way to dissolve Ozone in water.

The NANO can dissolve up to 70% of total Ozone produced while using incredibly low amounts of Oxygen (4 SLPM)

That’s more than Double the Ozone dissolved, Imagine replacing two expensive inefficient clunky Ozone Generators with one Sleek, Compact NANO Ozone Generator.

Now taking orders, Get yours today!

Product Characteristics

Ozone Production: 15 g/h
Standard Working Pressure: 20 PSIG
Concentration (% by weight O3): 5 -10%
Gas flow rate: 0.1 – 4 SLPM

Ambient Operating Conditions

A well-ventilated area that is protected from weather elements

Control Power Requirements

120 V ~ ±10%, 50/60 Hz, Single Phase, 5.0 A
220 V ~ ±10%, 50/60 Hz, Single Phase, 3.5 A
Maximum Power Consumption: 150-200 W

Physical Connections

Oxygen Inlet: 0.25-inch Swagelok
Ozone Gas Piping Outlet: 0.25-inch SS Swagelok

Materials and Construction

Enclosure: Brushed Stainless Steel/Aluminum
High Precision Machined Ozone Generator Cell tested at up to 120 PSIG for
leaks. O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

Dimensions and Weight

Enclosure Dimensions: 5 inch height x 5 1/4 inch width x 15.5 inch depth
Generator Weight: 5.8kg
CSA – available as an option

Reliability, Performance, and Quality Backed By 5 Years Warranty!

For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators.

AirSep offers completely self-contained oxygen generators (equipped with air compressors), these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure
