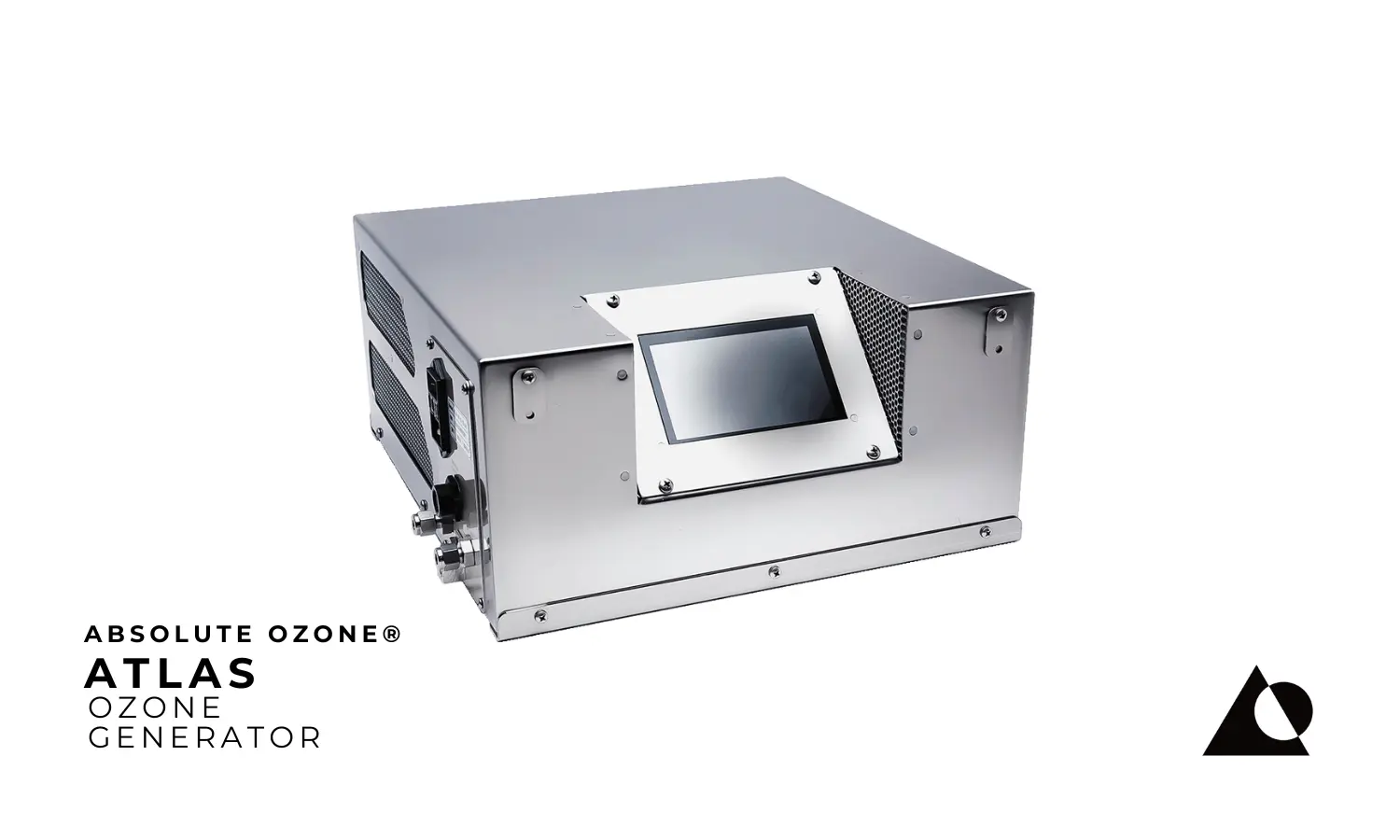

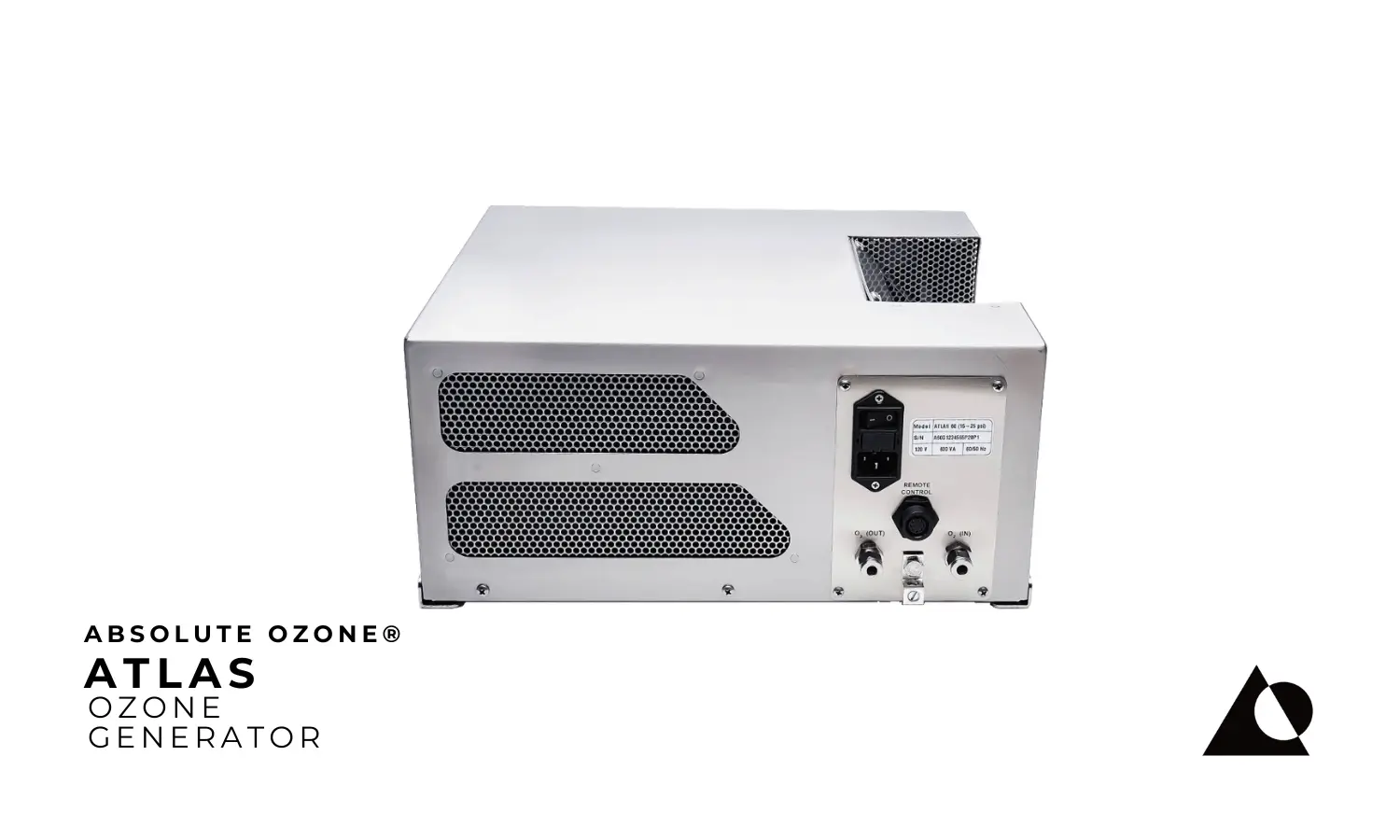

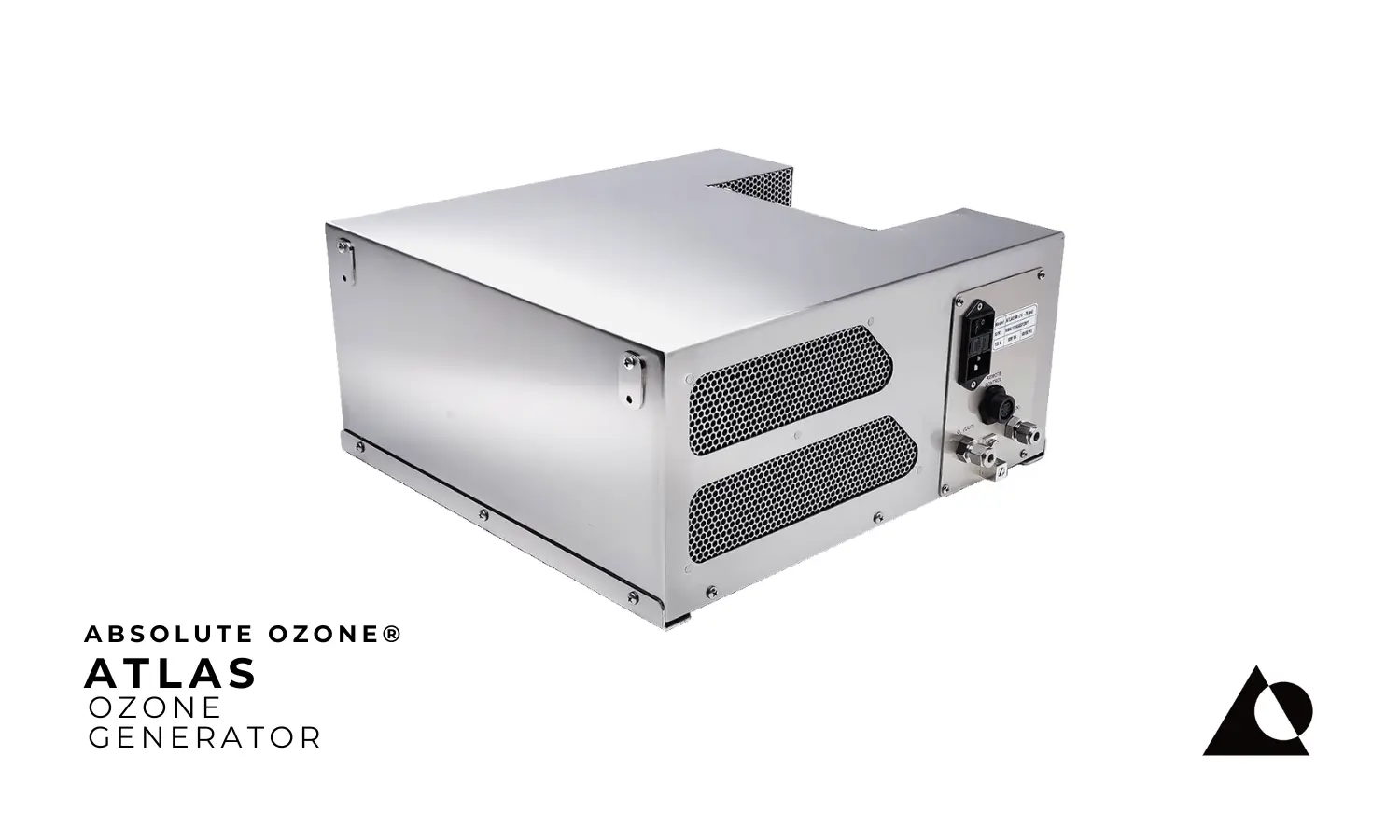

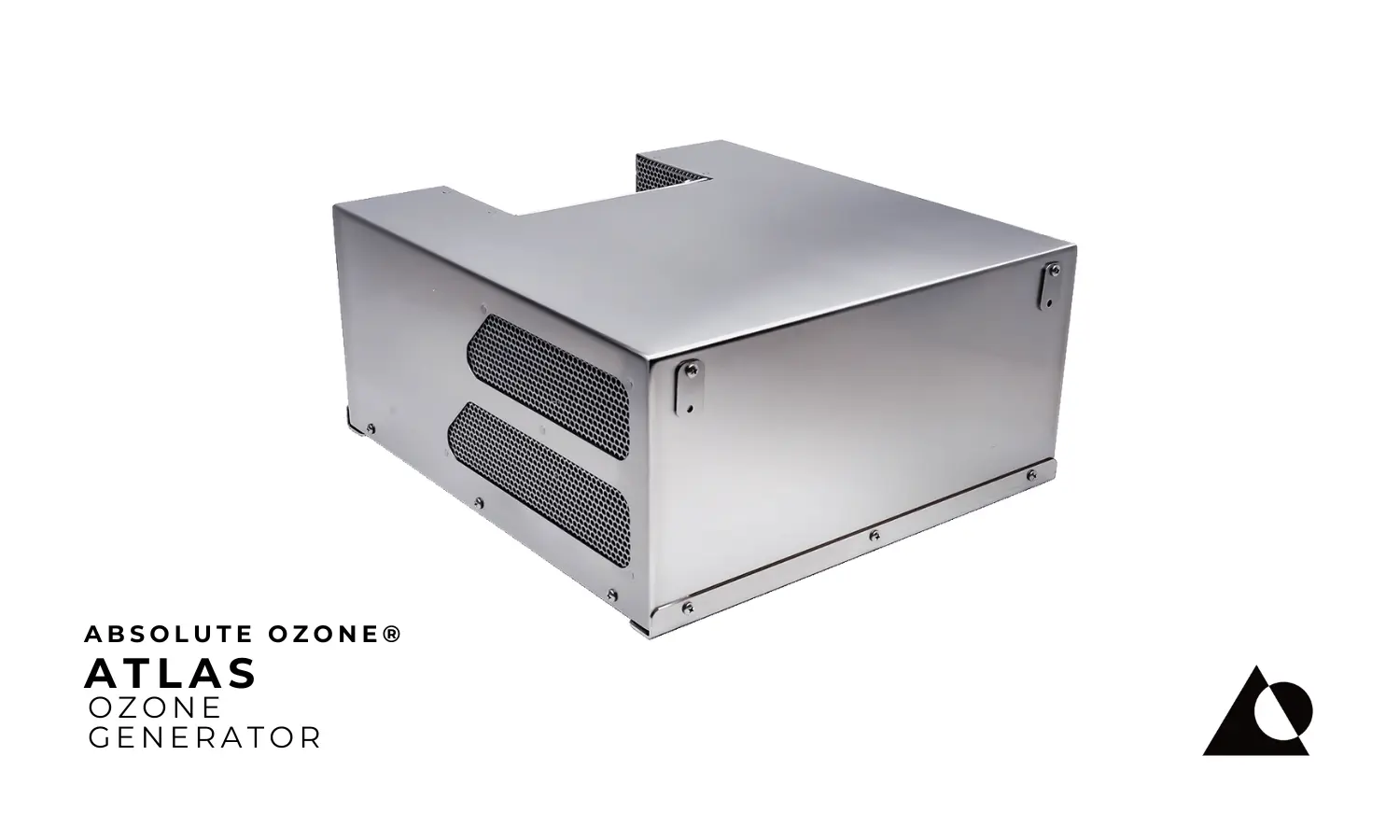

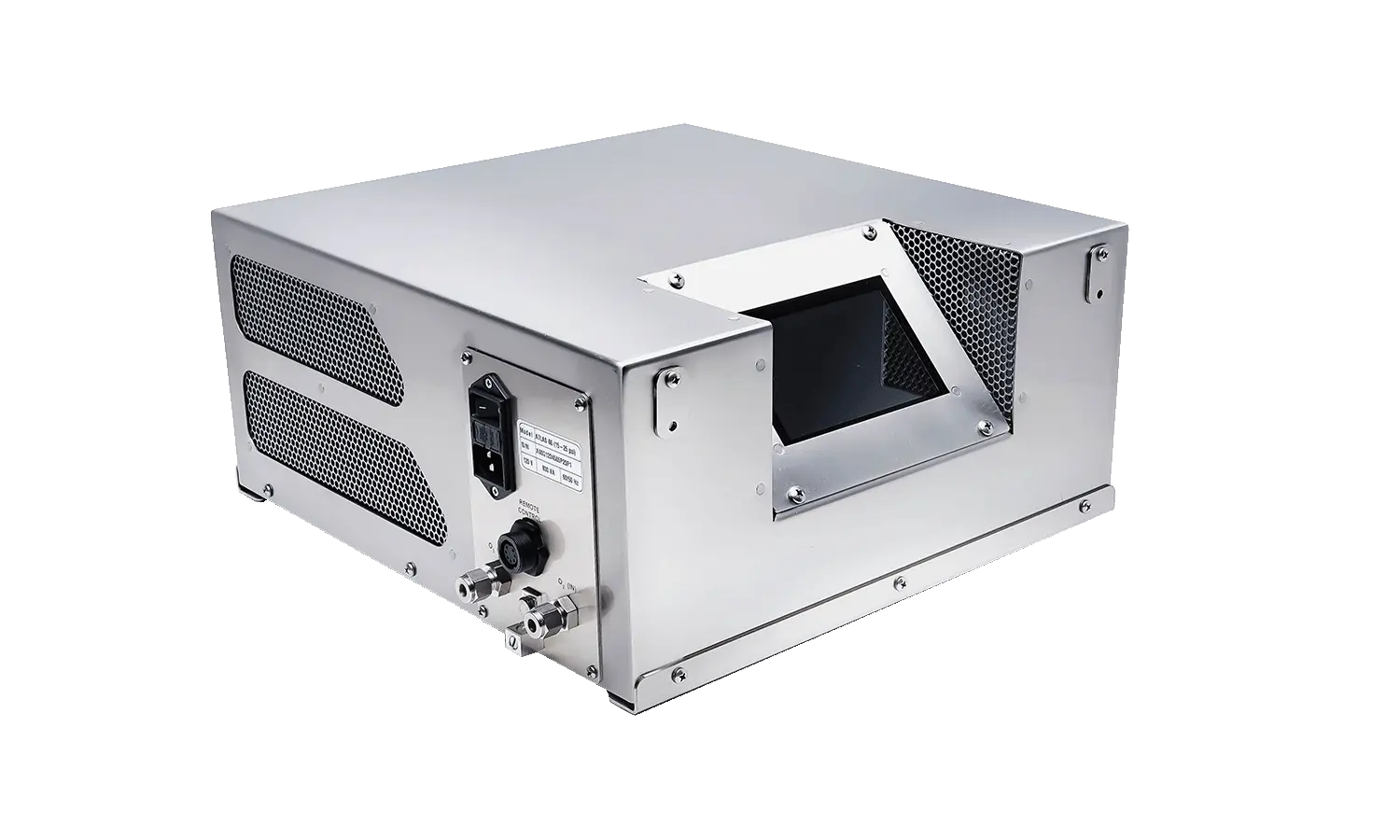

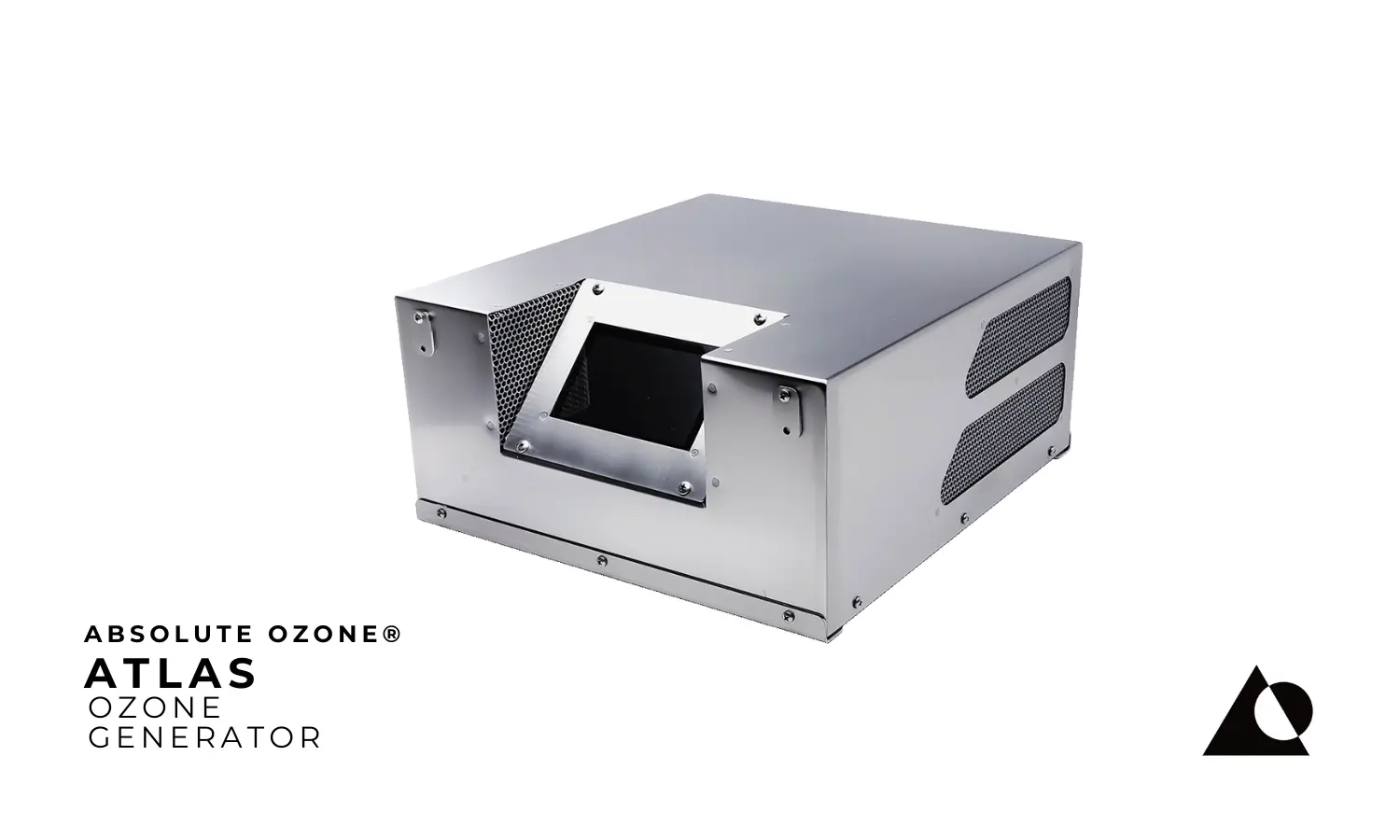

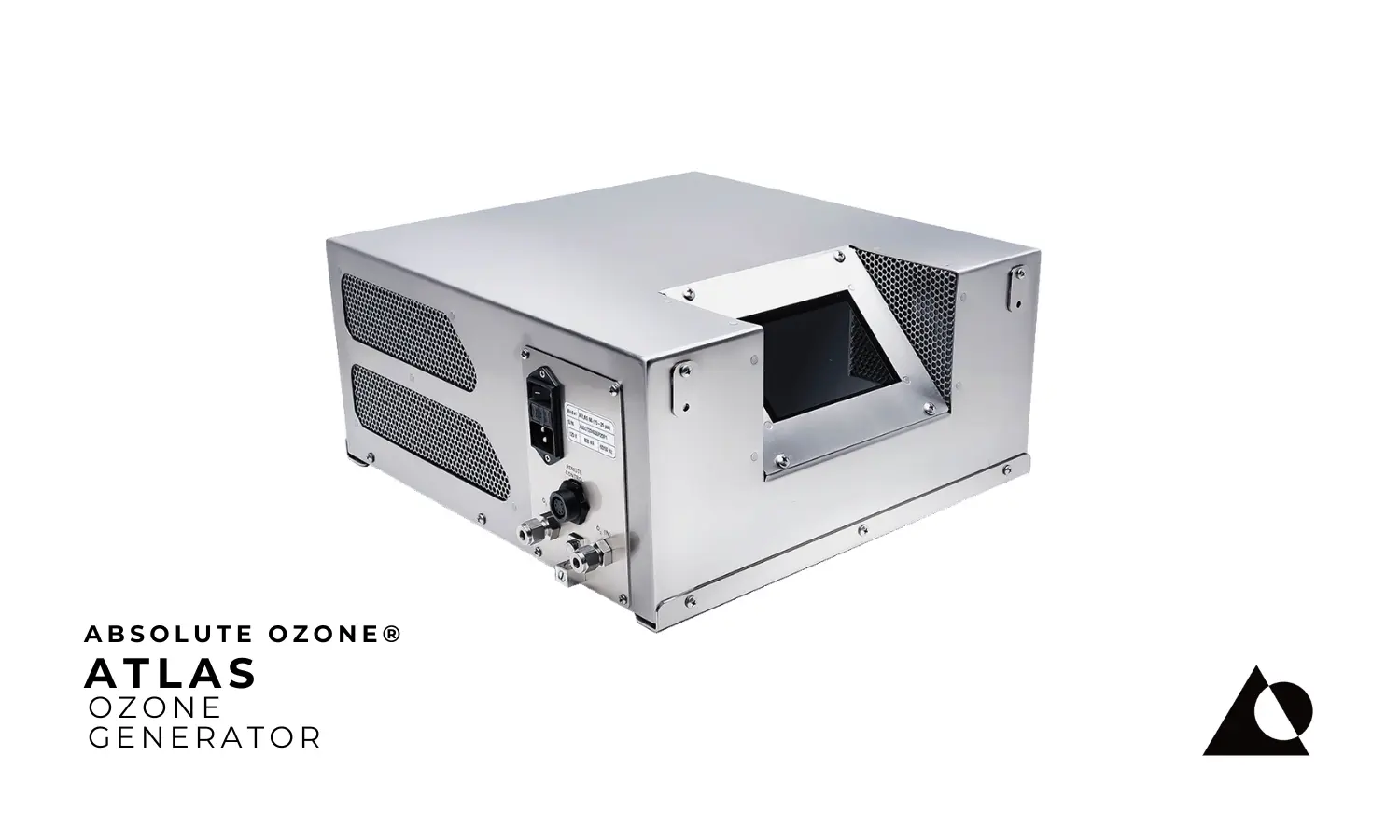

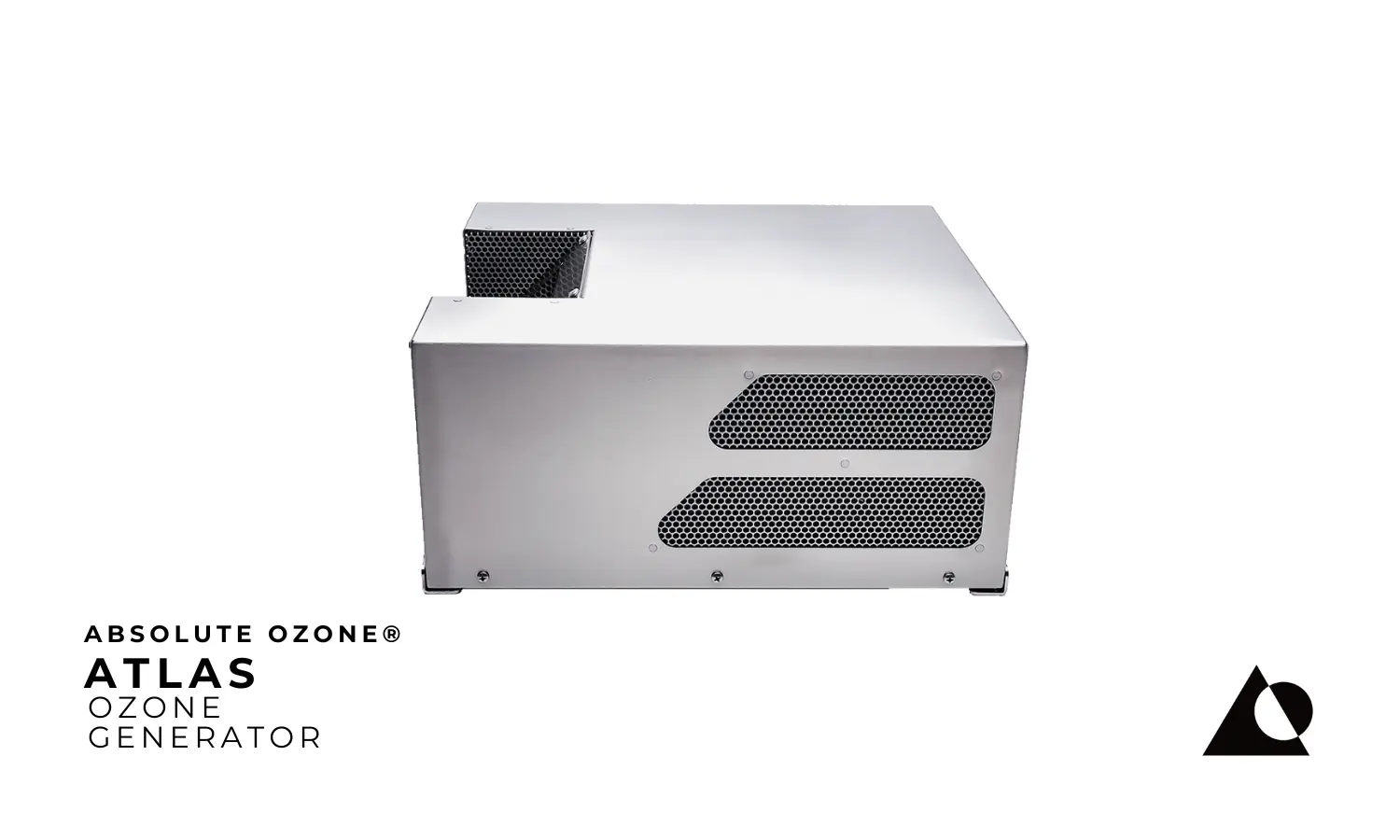

Atlas Industrial Ozone Generator


  • High Ozone Concentration

  • iOzone Intelligent Control/Diagnostic System

  • Service & Maintenance Free

  • 5 Years Warranty

  • Easy to operate

  • Compact design


Absolute Ozone® Generators are a quantum leap in Ozone technology. Due to specific elegant design, utilizing Microfluidic platform technology, and excellent durability, all air-Cooled Absolute Ozone® generators reliably provide ultra-pure, highly concentrated ozone for a wide variety of special applications. The performance is unequaled in the industry, with the capability of reliably producing high concentration ozone up to 14% by weight.

Product Characteristics*

Ozone Production: 60 g/h
Nominal Working Pressure: 20 psig
Concentration (% by weight O3): Up to 14%,
Nominal Working Gas flow rate: 0.1-14 SLPM

Ambient Operating Conditions

Locate the Ozone Generator in a well-ventilated area that is protected from weather elements

Control Power Requirements

120 V ~ +/-10%, 50/60 Hz, Single Phase, 6.5 A
230 V ~ +/-10%, 50/60 Hz, Single Phase, 3.25 A

Maximum Power Consumption: 550 W

Physical Connections

Oxygen Inlet: 0.25-inch Swagelok
Ozone Gas Piping Outlet: 0.25-inch Stainless Steel Swagelok

Materials and Construction

Enclosure: Brushed Stainless Steel/Aluminum
High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

Dimensions and Weight

Enclosure Dimensions: 7-inch height x 14-inch width x 15-inch depth
weight: 35 lbs

Certifications and Approvals

CSA – available as an option

Reliability, Performance, and Quality Backed By 5 Years Warranty


For best results with Absolute Ozone generators, we recommend using AirSep Oxygen concentrators.

AirSep offers completely self-contained oxygen generators (equipped with air compressors), these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure

Atlas 60 20 pis Water Disinfection Diagram

Visit our applications page for other applications installation diagrams
