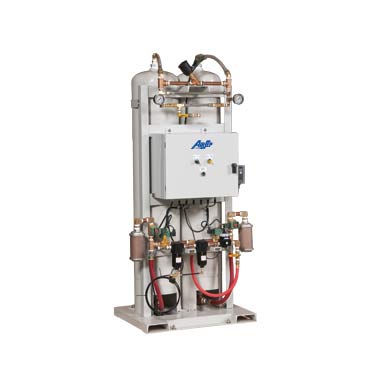

AS-E

LEADING-EDGE PERFORMANCE. TIMELESS RELIABILITY. CONVENIENTLY COMPACT.

For best results with Absolute Ozone generators, we recommend using AirSep Oxygen Generator.

Product Characteristics*

Product Flow: 160 – 195 SCFH (4.21 – 5.13 Nm³/hr or 75 – 92 SLPM)

Standard Product Pressure: 45 – 65 psig (310 – 448 kPa or 3.0 – 4.4 barg)

Product Purity: Up to 95%

Product Dew Point: -100°F (-73°C)

Ambient Operating Conditions

Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)

Feed Air Requirements

Clean and Dry “Plant Air” (Class 5.6.4 per ISO 8573.1)
Pressure: 90 psig (621 kPa or 6.2 barg) minimum
Temperature: 122°F (50°C) maximum

AS-E feed air requirement

Control Power Requirements

120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A

Physical Connections

Compressed Air Inlet: ½” FNPT
Product Gas Outlet: ³∕8” FNPT

Certifications and Approvals

China Pressure Vessel, ASME Section VIII Division 1, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Std. No. 61010-1:2012 (for 120 V configurations only)

Warranty: 1 Year Parts and Factory Labor*

  • Up to 95% oxygen concentration
  • Internal oxygen monitor
  • Easy to install and maintain
  • Expanded alarms for ease of troubleshooting
  • Low operating costs and energy efficient
  • Reduced noise level for different environments
