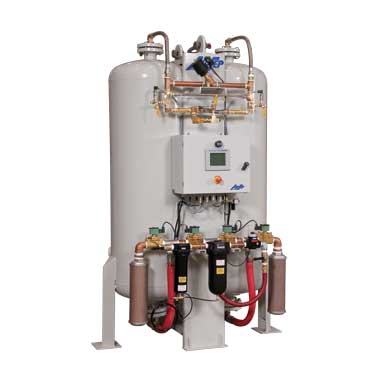

AS-K
LEADING-EDGE PERFORMANCE. TIMELESS RELIABILITY. CONVENIENTLY COMPACT.
For best results with Absolute Ozone generators, we recommend using AirSep Oxygen Generator.
Product Flow: 750 – 900 SCFH (19.72 – 23.66 Nm³/hr or 353 – 424 SLPM)
Product Pressure: 45 – 65 psig (310 – 448 kPa or 3.0 – 4.4 barg)
Product Purity: Up to 95%
Product Dew Point: -100°F (-73°C)
Ambient Operating Conditions
Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 104°F (40°C)
Feed Air Requirements
Clean and Dry “Plant Air” (Class 5.6.4 per ISO 8573.1)
Pressure: 90 psig (621 kPa or 6.2 barg) minimum
Temperature: 122°F (50°C) maximum
Control Power Requirements
120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
Physical Connections
Compressed Air Inlet: 1” NPT
Product Gas Outlet: 3/4” NPT
Certifications and Approvals
China Pressure Vessel, ASME Section VIII Division 1, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Std. No. 61010-1:2012
Warranty: 1 Year Parts and Factory Labor*
- Up to 95% oxygen concentration
- Internal oxygen monitor
- Easy to install and maintain
- Expanded alarms for ease of troubleshooting
- Low operating costs and energy efficient
- Reduced noise level for different environments
